20Vdc 35Vdc MTL4521 MTL Instruments Loop Powered MTL Solenoid Driver Alarm Driver

Brand Name : MTL

Model Number : MTL4521

Certification : HART

Place of Origin : UK/China

MOQ : 1

Price : Negotiate

Payment Terms : T/T

Supply Ability : 1000pcs per week

Delivery Time : stock

Packaging Details : carton

Product No : MTL4521

Product type : Solenoid/ Alarm Driver

Input voltage : 20 to 35V dc

Minimum output voltage : 13.6V at 48mA

Maximum output voltage : 24V from 180 Ω

Current limit : 48mA

Contact Now

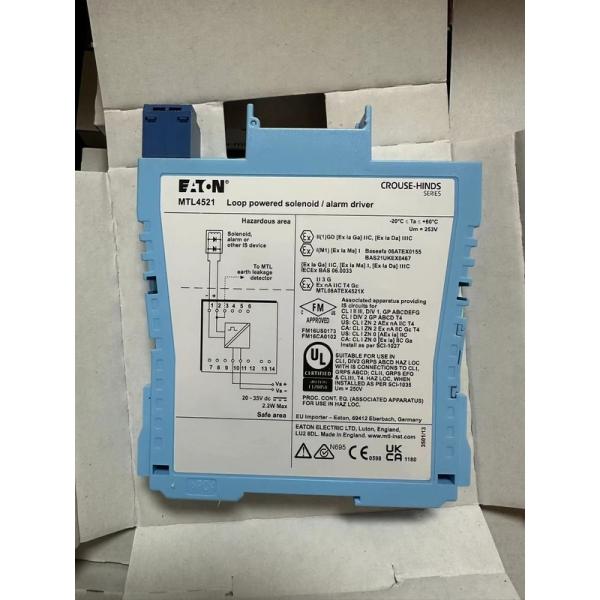

MTL4521 MTL InstrumentsLoop Powered Solenoid/Alarm Driver

The MTLx521 and the MTL4521L are loop-powered modules which enable a device located in the hazardous area to be controlled from the safe area. They can all drive a certifieintrinsically safe low-power load, as well as non-energy-storing simple apparatus such as an LED.

Solenoid/ Alarm Driver
loop-powered, IIC
Number of channels : One
Location of load : Zone 0, IIC, T4 6 hazardous area if suitably certified
Div. 1, Group A hazardous location
Minimum output voltage
Input voltage : 20 to 35V dc
Hazardous-area output MTL4521
Minimum output voltage : 13.6V at 48mA
Maximum output voltage : 24V from 180 Ω
Current limit : 48mA
Output ripple : < 0.5%of maximum output, peak to peak
Response time : Output within 10% of final value within 100ms
LED indicator : Yellow: output status, on when output active
Maximum current consumption: 90mA at 24V
Power dissipation within unit: 1.4W at 24V
Shipping Weight : 1 Kg

20Vdc 35Vdc MTL4521 MTL Instruments Loop Powered MTL Solenoid Driver Alarm Driver

HCU16	MTL5521	MTL4575
HCU3700	MTL5522	MTL4646Y
HM64RIB20-1.0	MTL5531	MTL4850
HM64RIB20-1.5	MTL5532	MTL4851
HMM64	MTL5541	MTL4852
HMRIB16-1.0	MTL5541S	MTL5018
HMS64	MTL5544	MTL5032
HTP-SC32	MTL5544D	MTL5042
MTL4044D	MTL5546	MTL5044
MTL4511	MTL5546Y	MTL5049
MTL4516	MTL5561	MTL5511
MTL4516C	MTL5573	MTL5514D
MTL4521	MTL5575	MTL5516
MTL4541	MTL5582B	MTL5516C
MTL4541	MTL7728+	MTL7787P+
MTL4544	MTL7756AC	MTLCPS16
MTL4544D	MTL7760AC	NJ5-18GK-N
MTL4546Y	MTL7761PAC	SD150X
MTL4549Y	MTL7765AC	SD32
MTL4573	MTL7787+	SD32X
TP48-4-N-NDI	TP48-3-N-NDI	SDRTD
TP48-N-NDI	TP48-4-I-NDI	SLP32D
