Yokogawa ADV151-P63 Digital Input Module

Yokogawa ADV151-P63 Digital Input Module

This GS covers the hardware specifications of the Digital I/O Modules (FIO) that can be installed in the ESB Bus Node Unit (ANB10S, ANB10D), Optical ESB Bus Node Unit (ANB11S, ANB11D), and the Field Control Unit (AFV30S, AFV30D, AFV40S, AFV40D).

Specifications

• Number of input channels 32 64

• Rated input voltage (*2) 24 V DC (sink/source) 24 V DC (sink/source)

• Input ON voltage 18 to 26.4 V DC 20 to 26.4 V DC

• Input OFF voltage 5.0 V DC or less 5.0 V DC or less

• Input current (at rated input voltage) 4.1 mA±20 % / channel 2.5 mA±20 % / channel

• Maximum allowable input voltage 30.0 V DC 30.0 V DC

• Withstanding voltage Between input signal and system: 2 kV AC, For 1 minute

• Between commons: 500 V AC, For 1 minute, common every 16-channel (*3)

• Functions

  Status input Function for detecting

  ON/OFF status

  Function for detecting

  ON/OFF status

  Pushbutton input Function for counting the pushbutton edges Function for counting the pushbutton edges

  SOE input Function for capturing the SOE data —

• Input response time 8 ms or less (for status input)

• Minimum ON detection time 20 ms (for pushbutton input)

• Maximum ON/OFF cycle 25 Hz (for pushbutton input)

• Maximum current consumption 500 mA (5 V DC) 550 mA (5 V DC)

• Weight Approx. 0.30 kg Approx. 0.30 kg

• External connection

  Pressure clamp terminal,

  Dedicated cable (AKB331),

  MIL connector cable

  Dedicated cable (AKB337),

  MIL connector cable

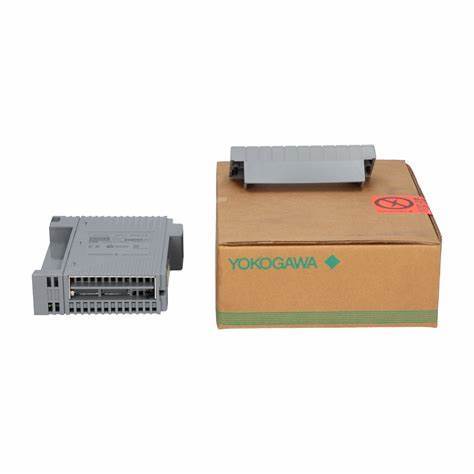

Yokogawa ADV151-P63 Digital Input Module Images
