IFM Flow monitor SI5000 SID10ABBFPKG/US-100

Product Categories

Achievers Automation Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : IFM

Model Number : SI5000

Place of Origin : Germany

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : Negotiable

Packaging Details : carton

Manufacturer : IFM

Product No : SI5000

Housing : tubular

Protection : IP 67

Contact Now

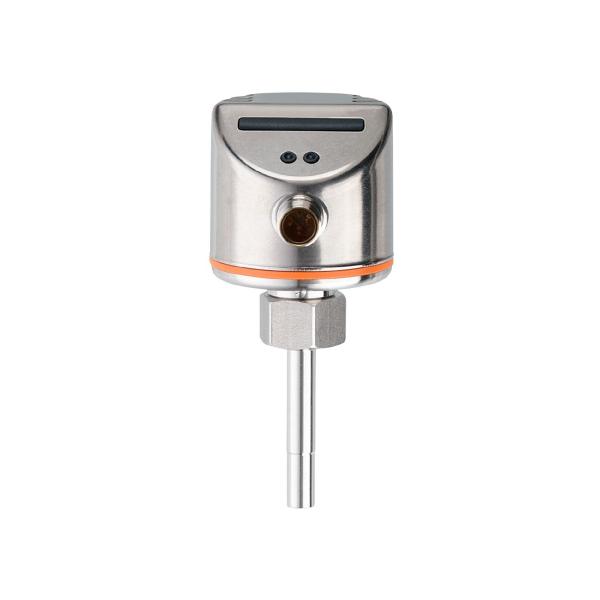

IFM Flow monitor SI5000 SID10ABBFPKG/US-100

Reliable monitoring of liquids and gases in pipes

Variable process connection using adapters

Easy setting of the switch points for quick set-up

Robust stainless steel housing for use in harsh industrial environments

LED bar graph for indication of switch point and flow

Adjustment of the switch point

pushbuttons

Operating conditions

EMC	EN 61000-4-2 ESD4 kV CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-6 HF conducted10 V
Shock resistance	DIN IEC 68-2-2750 g (11 ms)
Vibration resistance	DIN EN 60068-2-620 g (55...2000 Hz)
MTTF[years]	298

Weight[g]	246
Housing	tubular
Dimensions[mm]	Ø 50 / L = 113
Material	stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection	threaded connection M18 x 1,5 Internal thread
Probe diameter[mm]	8.2
Installation length EL[mm]	45

Display

Function10 x LED, three-color

Pack quantity

1 pcs.
